PPE 1156 TFX

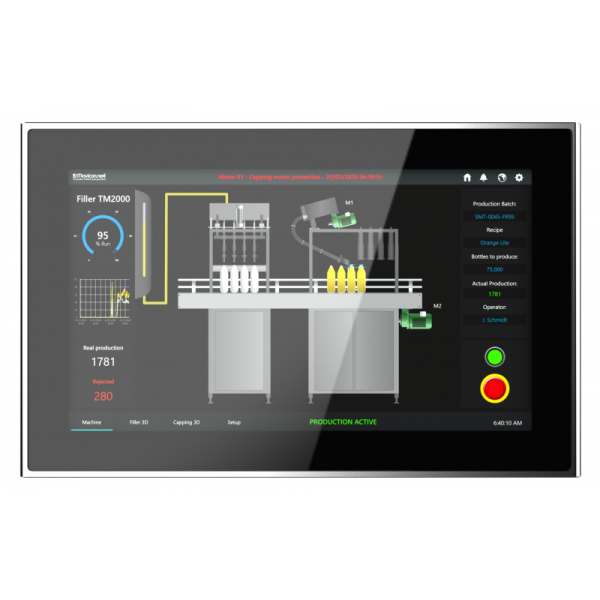

15.6" WIDE TRUE FLAT touch screen display PC-based with front frame made of Stainless Steel AISI316

PPE TFX is the industrial True Flat touch screen PC AISI316 with stainless steel front frame fully engineered by ELMAK, that satisfy multiple demands and applications.
PPE TFX is characterized by its flexibility. It is mainly due to its modular nature, which let the PC configuration always created in an optimal way according to the requests. Important detail analyzing aspect of the overall dimensions and costs.
The modularity nature lets have different configuration possibilities: expansion slots, DVD players, CFAST, additional storage unit to create RAID systems, and several type of communication boards.

PPE TFX series supports both low-power CPU (Intel Celeron) and high-performance (Intel Core-i)
All Kabylake/Coffee-Lake CPUs are supported (from 7° to 9° generation)

Both standard HDD and solid state drives are supported. SSDs are recommended for applications with vibrations or high temperatures.

PPE TFX integrates Active Matrix TFT with LED backlight and it can be supplied with custom front graphical on request.
It is available in AC or DC power version.

The panel fixing is performed through "Fast Clamp", the new quick-mount brackets system, able to ensure an uniform and safe adherence to the panel, quickly and without the need to make holes for pins. This system ensures maximum grip and is an innovation than conventional fastening systems.

Microsoft Windows 7/10 (depending on model) and Linux operating systems are supported.


B6 Module: CPU Intel i3/i5/i7 7-genB5 Module: CPU Celeron Braswell N3160B7 Module: CPU Intel i3/i5/i7 9-genB8 Module: CPU Celeron Apollo Lake J3455
ELECTRICAL FEATURES
AC INPUT VERSION90 - 264 VAC90 - 264 VAC90 - 264 VAC90 - 264 VAC
DC INPUT VERSION18 - 36 VDC18 - 36 VDC18 - 36 VDC10 ~ 36 V
POWER CONSUMPTIONUp to 250 WUp to 30 WUp to 250 WUp to 30 W
INTERFACES
AUDIOMic-in, Line-in, Line-outMic-in, Line-in, Line-out
GPIO INTERFACEProgrammable on board 8-bit Digital I/OOnboard 8-bit Digital I/OProgrammable on board 8-bit Digital I/OOnboard 8-bit Digital I/O
KEYBOARD/MOUSE----
LAN2 x GigaLan - Intel I211AT + Intel I219LM2 x Realtek RTL8111G PCI-E Gigabit LAN2 x GigaLan - Intel I211AT + Intel I219LM2 x Intel I211-AT Gigabit LAN
LPT-Option-
SERIAL PORTS1 x RS232 port + 1 x RS232/422/4853 x RS232 port + 1 x RS232/422/4852 x RS232/422/485 (+ 4 x RS232 option)3 x RS232 port + 1 x RS232/422/485
USB6 x USB 3.04 x USB 3.06 x USB 3.14 x USB 3.0
VIDEO1 x DP , 1 x HDMI , 1 x DVI-D1 x DVI-D1 x DP , 1 x HDMI , 1 x VGA2 x HDMI
MAINBOARD
CHIPSETIntel Q170-Intel Q370-
CPUIntel SK 1151 Kaby Lake 7° genIntel Celeron Braswell N3160 4x1.60GHzIntel Coffee Lake i3/i5/i7Intel Celeron Apollo Lake j3455 - 4 x 1.5 / 2.3 GHz
EXPANSION SLOTSNr. 1 PCIEx16 + Nr. 1 Mini-PCIE (Half size) + Nr. 1 Mini-PCIE (Full size)Nr. 1 Mini-PCIe + Nr. 1 PCIEx1Nr. 1 PCIEx16 + Nr. 1 M.2 M-key 2280 + Nr. 1 M.2 E-keyNr. 1 Mini-PCIe + Nr. 1 x M.2 SATA + Nr. 1 PCIEx1
RAMUp to 32 GB DDR4 SoDimmUp to 8 GB DDR3 SoDimm L.V.Up to 32 GB DDR4 SoDimmUp to 8 GB DDR3 SoDimm L.V.
VIDEO CARDIntel HD graphics 530Intel HD GraphicsIntel UHD 630Intel HD Graphics 500
WATCHDOG TIMER10 sec.~4095min SW programmable1sec.~255min SW programmable10 sec.~4095min SW programmable1sec.~255min SW programmable
FSB--
Read more
PPE 1156 TFX

Data sheet

I/O MODULES
Up to 8 + 8 I/O with opto-isolation and relais
EXPANSION SLOTS
Option, depends from version
CHASSIS MATERIAL
RAL7035 Painted steel
WORKING TEMP
0 - 60° C, non-condensing
DIMENSIONS (mm)
415 x 260
COOLING
Fanless on Atom / Celeron systems. Forced on others.
WEIGHT
6 Kg.
IP PROTECTION
IP65 on front-panel
SOLID STATE
From 64 GB to 1 TB, SLC or MLC version available
MOUNTING
Fast mounting with clamps
HUMIDITY
10-90%
OPTICAL UNITS
DRW (option)
REMOVABLE UNITS
Option, up to 2 x 2,5" removable units
HDD
From 500 GB to 2 TB, also with RAID (expansion module needed)
DC INPUT VERSION
24 V (18~36 V)
AC INPUT VERSION
90~265 V - 50-60Hz
DISPLAY
TFT 15,6" WIDE LED - WXGA (1366 x 768) or Full-HD (1920 x 1080)
MATERIALS
AISI 316 Stainless steel
TOUCH SCREEN
Resistive or Projective Capacitive True Flat
DEPTH (mm)
85 (slim) - 150 (exp.)

DRIVER SERIE B1

Chipset inf (2.87MB)
AHCI Intel (11.14MB)
VGA Win7 x86 (17.77MB)
VGA WinXP (2.01MB)
LAN Win 2K XP x86 (5.51MB)
LAN Win 7 x86 x64 (5.63MB)
USB 3 (4.73MB)
Audio Win 7 (96.68MB)
Audio Win XP (31.32MB)

DRIVER SERIE B2

AHCI (11.96MB)
Chipset Intel QM77 (2.87MB)
ME driver (61.54MB)
VGA Win2k XP (23MB)
VGA Win7 x86 (109.25MB)
VGA Win7 x64 (137.7MB)
LAN Win7 x86 x64 (52.34MB)
LAN Win XP (18.18MB)
LAN Win XP (multi-lan) (17.88MB)
USB3 Win 7 (5.2MB)
Audio (130.37MB)

DRIVER SERIE B3

INF (2.3MB)
LAN Win7 (5.85MB)
VGA Win7 x64 (134.62MB)
VGA Win7 x86 (99.77MB)
VGA Win8 x86 (74.29MB)
VGA Win8 x64 (135.83MB)
LAN Win8 (5.76MB)
USB3 AsMedia (1.12MB)
USB3 Intel (5.21MB)
TXE Win7 (54.48MB)
TXE Win 8 x64 (53.03MB)
TXE Win 8 x86 (53.03MB)
MBI (1.1MB)
GPIO (3.91MB)

DRIVER SERIE B5

INF (2.68MB)
LAN (9.47MB)
USB 3.0 (5.26MB)
TXE (36.11MB)
VGA 32bit (97.54MB)
VGA 64bit (114.2MB)

DRIVER SERIE B6

INF (5.74MB)
VGA KabyLake (7 Gen) Win7 32 (122.48MB)
VGA KabyLake (7 Gen) Win7 64 (229.12MB)
VGA KabyLake (7 Gen) Win 10 64 (242.66MB)
LAN (64.55MB)
USB 3 (13.58MB)
ME (240.46MB)
Audio (218.92MB)

DRIVER SERIE B7

INF (4.93MB)
VGA (367.01MB)
LAN (466.55MB)
ME (101.84MB)

DRIVER SERIE B8

INF (4.9MB)
VGA x64 (349.37MB)
LAN (478.66MB)
Audio (261.81MB)
Serial_IO (2.63MB)
Txe (70.45MB)
Irmt_24 (19.52MB)
ish (17.31MB)

DRIVER TOUCHSCREEN

Touch Screen RESISTIVE - Windows ALL (10.24MB)
Touch Screen PCAP Win7 (0)
