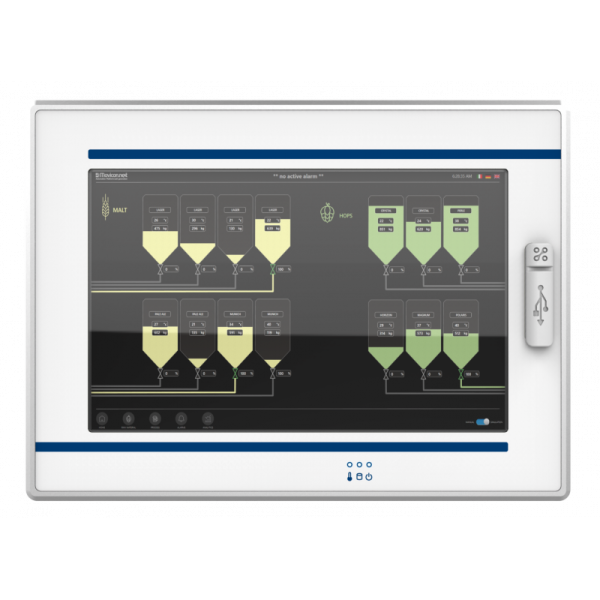

PPE 1121

12,1" WideScreen display PC-based series

PPE 1121 is the WIDESCREEN industrial touch screen PC entirely designed by ELMAK, which meets multiple needs and applications.

PPE 1121 has Intel Celeron CPU or core i5.

Both standard and solid state drives are supported. SSDs are recommended for applications where vibration or high temperatures are present.

PPE 1121 integrates active matrix TFT display with LED backlight and can be supplied with customized graphic interface upon request. It is also available in both AC and DC powered versions.

The panel is fixed by means of the "Fast Clamp" system, the new quick mounting system with wide brackets capable of ensuring uniform and safe pressure on the panel, without the need to drill holes for the passage of pins. This system guarantees maximum adherence and is a novelty compared to traditional fastening systems.

Microsoft Windows 7/10 (depending on model) and Linux operating systems are supported.

INPUT
	B5 Module: CPU Intel Braswell N3160	B6 Module: CPU Intel i5-7200U	B8 Module: CPU Intel Apollo Lake J3455

CONNECTION TYPE	Terminal with screws	Jack
MAX POWER	25 W max	25 W max
VOLTAGE	9-36VDC	9-36VDC (23..29 VDC for UPS version)
INTERFACES
GPIO INTERFACE	Programmable on board 8-bit Digital I/Os	Programmable on board 8-bit Digital I/O	Programmable on board 8-bit Digital I/Os
LAN	2 x Intel I211-AT Gigabit LAN	2 x GigaLan - Intel I211AT + Intel I219LM	2 x Intel I225-V PCIe 2.5GbE LAN
SERIAL PORTS	3 x RS232 port + 1 x RS232/422/485	2 x RS232 port + 1 x RS232/422/485	1 x RS232 port + 1 x RS232/422/485
USB	4 x USB 3.0	4 x USB 3.0 + 2 x USB 2.0	3 x USB 3.1 + 1 x USB 2.0
VIDEO	1 x HDMI + 1 x DP	1 x DP , 1 x HDMI	1 x HDMI
AUDIO		Line-out
MAINBOARD
CPU	Intel Celeron Braswell N3160 - 4x1,6 Ghz		Intel Celeron Apollo Lake J3455 - 4 x 1.5/2.3 GHz
VIDEO CARD	Intel HD Graphic	Intel HD graphics 630	Intel HD Graphic 500
EXPANSION SLOTS		Nr. 1 Mini-PCIE
RAM		Up to 32 GB DDR4 SoDimm
WATCHDOG TIMER		10 sec.~4095min SW programmable
