WMT 501

WMT 501

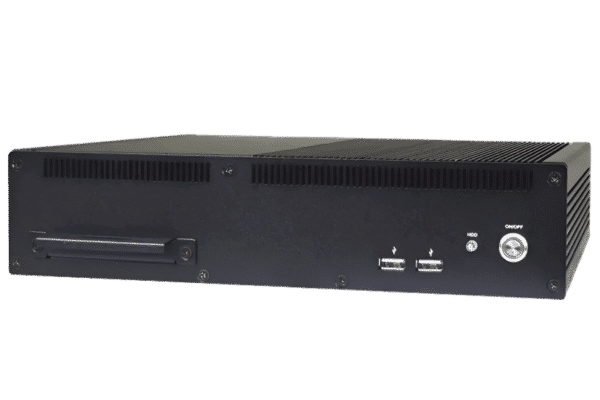

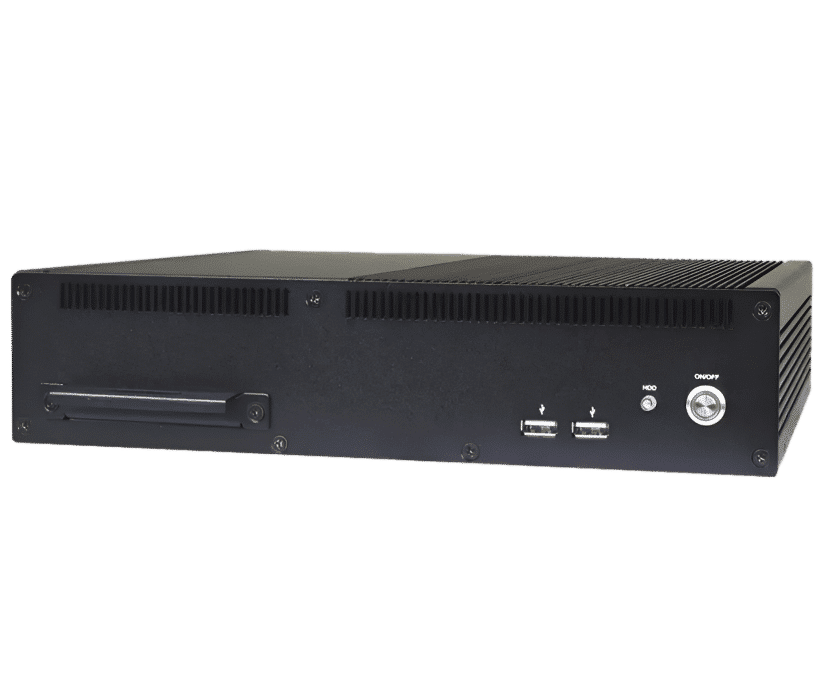

Fanless embedded industrial PC box perfect for wall mounting or horizontal installation, robust and reliable.

The WMT 501 is the perfect fanless embedded industrial PC box solution that ensures high reliability thanks to the complete absence of moving parts.

B7 versionB9 version
CPUIntel CoffeeLake i3/i5/i7Intel RocketLake i3/i5/i7
RAMUp to 32 GB DDR4Up to 64 GB DDR4
StorageUp to 2 TB NVMeUp to 2 TB NVMe
CoolingFanlessFanless
ShellAluminumAluminum
Technical data overview
logo-windows
logo-linux
Available options
RAMUp to 64GB
RAM
Up to 64GB
StorageUp to 2 TB
Storage
Up to 2 TB
Power supply19 VDC (AC adapter included)
Power supply
19 VDC (AC adapter included)
Reliable and robust

Built with a robust thick steel case and thanks to the complete absence of moving parts, it offers a resistant structure capable of adapting to any possible industrial application.

Installation flexibility

The WMT 501 can be installed both on horizontal surfaces and wall-mounted thanks to the brackets provided as standard.

Technical specifications

B7 versionB9 version
CPUModelIntel CoffeeLake i3/i5/i7Intel RocketLake i3/i5/i7
CPUBase frequency3.1 / 2.2 / 2.0 GHz3.0 / 1.3 / 1.4 GHz
CPUTurbo frequency3.7 / 3.7 / 4.3 GHz3.8 / 3.7 / 4.6 GHz
CPUCores4 / 6 / 84 / 6 / 8
CPUThreads4 / 6 / 88 / 12 / 16
CPUCache6 / 8 / 12 Mb6 / 12 / 16 MB
MotherboardRAMUp to 32 GB DDR4 3200 MHz SoDimmUp to 64 GB DDR4 2666 MHz SoDimm
MotherboardWatchdog timerProgrammable by S/W - 1 sec.~255minProgrammable by S/W - 1 sec.~255min
Disk driveSlot m.2Up to 2 TB NVMeUp to 2 TB NVMe
Disk driveSATA SlotUp to 2 TB SATAUp to 2 TB SATA
InterfacesLAN2 x GigaLan - Intel 211AT + I219LM1 x 2.5G Lan Intel i225LM
+ 1 x 1G Lan - Intel I219LM
InterfacesSerial ports2 x RS232/422/4852 x RS232/422/485 + 2 x RS232 port
InterfacesVideo outputs2 x DP + 1 x HDMI1 x DP + 2 x HDMI
InterfacesUSB4 x USB 3.1 + 2 x USB 2.04 x USB 3.2 + 2 x USB 2.0
InterfacesGPIO interfaceProgrammable on board 8-bit Digital I/OProgrammable on board 8-bit Digital I/O
InterfacesAudioMic-in, Line-in, Line-outMic-in, Line-in, Line-out
Power suppliesDC19 VDC19 VDC
General featuresWorking temperature-20° - 50° C, non-condensed-20° - 50° C, non-condensed
General featuresBody materialAluminumAluminum
General featuresAssemblyWallmount / DINWallmount / DIN
General featuresCoolingFanlessFanless
General featuresIP ProtectionIP40IP40
General featuresO.S. supportedWindows 10/11, LinuxWindows 10/11, Linux
