PME 4000

PME 4000

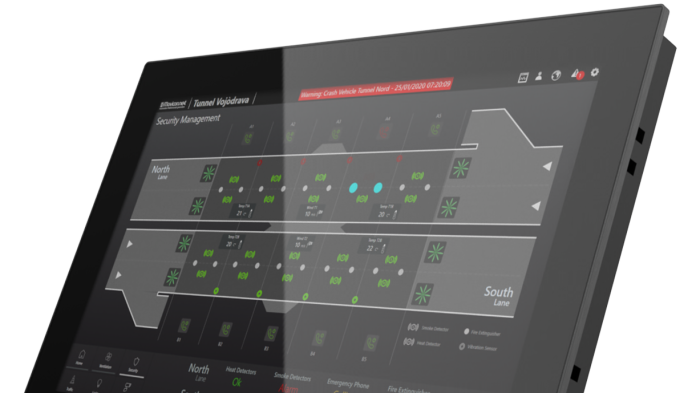

Industrial panel monitors with flush or VESA mounting with capacitive touchscreen.

Our panel monitors from the PME 4000 family represent a versatile and innovative solution for the industrial sector. Available in two versions of video cards, these monitors guarantee a wide range of connectivity to meet every need, from industrial machinery management to advanced automation systems. Thanks to their compact and elegant design, they integrate perfectly into any environment, facilitating installation even in tight spaces.

Version 1Version 2
Display10.1 “~ 24”"10.1 “~ 24”"
Video outputs1 x VGA + 1 x DVI1 x VGA + 1 x DVI + 1 x HDMI + 1 x DP
Front PanelAluminum / Stainless steelAluminum / Stainless steel
Technical data overview
Panel PC industriali da 10 a 24 pollici PPE 4000 slim
A
STD/INOX
B
STD/INOX
CDEFGHI
10.1" - PME 4100280 / -200 / -265185263185631,139,1
12.1" - PME 4120330 / -230 / -316216314216631,139,1
15.0" - PME 4150377 / 387300 / 305360285357,7280,7631,139,1
15.6" - PME 4156411 / 421258 / 26339324039123863139,1
17" - PME 4170N/A.N/A.N/A.N/A.N/A.N/A.N/A.N/A.N/A.
18.5" - PME 4185485,4 / 498306,4 / 31046528746328563146
19" - PME 4190440,8 / 456365,5 / 379,5428352425350631,246
21.5" - PME 4215554 / 564345 / 350535325532323631,346
24" - PME 4240608 / 618368 / 373590350588348631,346
All dimensions are expressed in millimeters (mm).

The display, equipped with active matrix TFT technology and WIDE LED backlighting, offers sharp images, brilliant colors and exceptional visibility even in variable lighting conditions. The True Flat Capacitive Touch Screen, with a completely smooth surface free of edges, guarantees a fluid and precise user experience, minimizing dirt accumulation and facilitating cleaning.

Among the distinctive features of the PME 4000 are:

  • High resistance: quality materials to last over time even in harsh environments.
  • Customization: configurable options to adapt to specific customer needs.
  • Energy efficiency: thanks to LED backlighting, the monitor is designed for low energy consumption without compromising image quality.
  • Reliability: rigorous testing guarantees consistent and safe 24/7 performance.
  • 1 Slim frame in aluminum or stainless steel
  • 2 True flat touch full glass
  • 3 10-point capacitive multi-touch touchscreen
  • 4 IP65 front protection (stainless steel)
  • 5 Quick fastening system
  • 1 Extra USB connectivity hub
  • 2 AC or DC power supply
  • 3 Version 1 with VGA and DVI input
  • 4 Version 2 with VGA, DVI, HDMI, and DisplayPort inputs
Monitor industriale panel PME 4000 punti forti

The PME 4000 is an industrial monitor True Flat Touch Screen designed for reliable and lasting performance. With a front panel available in aluminum or stainless steel, it is designed to withstand the most demanding conditions, such as dusty, humid environments or those subject to vibrations. This monitor is completely engineered by ELMAK, synonymous with quality and innovation, to respond to the most diverse requests and applications of production processes.

Whether it’s managing production lines, monitoring critical processes or integrating HMI (Human-Machine Interface) systems, the PME 4000 is the ideal choice for those seeking a perfect combination of advanced technology, robustness and elegant design.

Panel PC Version
The PPE 4000 series can also be supplied in All in One PC version with hardware components for the computing part.
PME 4000 versione monitor

Technical specifications

Version 1Version 2
Video inputsVGAYesYes
Video inputsDVIYesYes
Video inputsHDMINoYes
Video inputsDisplayPortNoYes
Power suppliesDC24 V (18~36 V)24 V (18~36 V)
Power suppliesAC90~265 V - 50-60Hz90~265 V - 50-60Hz
Front PanelTouchscreen10-touch capacitive multitouch10-touch capacitive multitouch
Front PanelDoors1 x USB 2.01 x USB 2.0
Front PanelMaterialsAluminum / Stainless steelAluminum / Stainless steel
General featuresHumidity10-90%10-90%
General featuresIP ProtectionIP65 (stainless steel)IP65 (stainless steel)
General featuresFixingEasy assembly with Elmak supportsEasy assembly with Elmak supports
General featuresWorking temperatures0 - 60° C, non-condensing0 - 60° C, non-condensing
Extra optionsUSB HUB2 x USB 2.02 x USB 2.0
