| A | B | C | D | ||
|---|---|---|---|---|---|
| 12.1" - CPE 4210 | 375 | 394 | 46,5 | 100 | |
| 15" - CPE 4150 | 411 | 336 | 51,5 | 100 | |
| 15.6" - CPE 4156 | 456 | 305 | 51,5 | 100 | |
| 17" - CPE 4170 | 448 | 380 | 51,5 | 100 | |
| 18.5" - CPE 4185 | 520 | 341 | 51,5 | 100 | |
| 19" - CPE 4190 | 486 | 411 | 51,5 | 100 | |
| 21.5" - CPE 4215 | 592 | 383 | 51,5 | 100 | |
| 24" - CPE 4240 | 643 | 412 | 51,5 | 100 | |
| 32" - CPE 4320 | 845 | 539 | 62 | 200 | |
| All dimensions are expressed in millimeters (mm). | |||||
- 1 Touchscreen capacitivo a 10 tocchi
- 2 Pulsantiera custom opzionale
- 3 Porta ingresso video HDMI
- 4 Porta USB per comunicazione touchscreen
- 5 Alimentazione DC 12 - 24VDC
- 6 Supporto VESA
Connettori IP67
Supporti per ogni esigenza
Ambiti di utilizzo

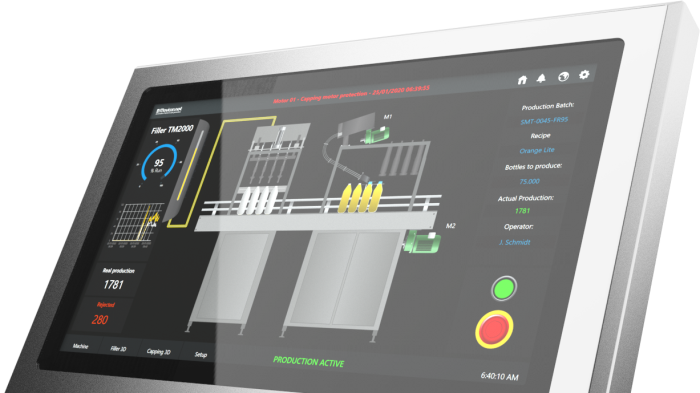

The CME 4000 series monitors meet production requirements in environments where the use of stainless or aseptic materials is required. They find application in the food, pharmaceutical and chemical sectors. The design phase is characterized by optimal technological solutions and attention to detail to offer a high-quality product. The Hybernis 4000 series with AISI 316 stainless steel frame is manufactured with a 10-point multitouch capacitive TrueFlat touchscreen with black cover.
IP67 connectors for HDMI, USB and power ports are located on the rear. The related cables can be supplied on request and have a default length of 5 m.
Mounting is done through the rear arrangement. A 3-movement articulated arm for wall mounting is optionally available.
Panel PC Version
