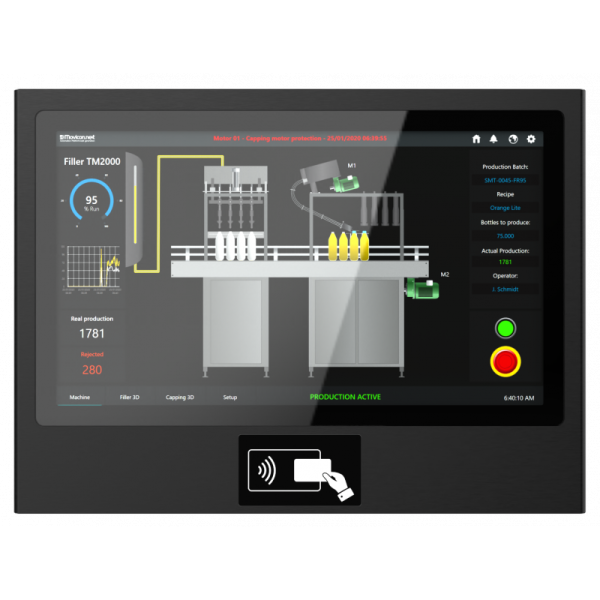

PSE 3185 RF

18,5" VESA mount touchscreen panel PC with RFID reader

PSE is the 18,5" True Flat touch screen PC entirely designed by Elmak arranged for VESA arm mounting.
Particularly suitable for user support applications in production departments, it allows to have quick access to applications and to documents archives for quick consultation during production processes.

Equipped with Ethernet and WiFi/BT connectivity, it allows to exploit the incentives for industry 4.0 in the implementations in which this is expected.

Equipped with RFID BADGE reader, it allows the user to log in quickly and securely.
PSE series can be provided with two different CPU sizes: Intel Celeron Braswell, Apollo Lake and 7th Generation Core i5 (Kaby-Lake)
Both standard and solid-state disks are also supported.

PSE integrates active-matrix TFT display with LED backlight and is available in both AC and DC versions.

The clean, compact and elegant design makes it suitable for any environment, from workshop to laboratories, to modern offices.

Microsoft Windows 7/10 (depending on model) and Linux operating systems are supported.
B5 Module: CPU Celeron Braswell N3160B6 Module: CPU i5 Kaby Lake 7200UB8 Module: CPU Celeron Apollo Lake J3455
INPUT
CONNECTION TYPEJackJack
MAX POWER25 W35 W30 W max
VOLTAGE9-36VDC9-24VDC
INTERFACES
AUDIOLine-outLine out(internal)
GPIO INTERFACEProgrammable on board 8-bit Digital I/OsProgrammable on board 8-bit Digital I/OsProgrammable on board 8-bit Digital I/Os
LAN2 x Intel I211-AT Gigabit LAN2 x Intel Gigabit LAN (i219LM + i211AT)2 x Intel I225-V 2.5GbE LAN
SERIAL PORTS(OPTION) 2 x RS232 port + 1 x RS232/422/485(OPTION) 2 x RS232 port + 1 x RS232/422/485(OPTION) 1 x RS232 port + 1 x RS232/422/485
USB4 x USB 3.04 x USB 3.03 x USB 3.1 + 1 x USB 2.0
VIDEO1 x HDMI + 1 x DP1 x HDMI + 1 x DP1 x HDMI
MAINBOARD
CPUIntel Celeron Braswell N3160 - 4x1,6 GhzIntel Core i5-7200U, 2x2.50GHz (4 Threads)Intel Celeron Apollo Lake J3455 - 4 x 1.5/2.3 GHz
RAMUp to 8 GB DDR3 1600 Mhz SoDIMMUp to 32 GB DDR4 2133 Mhz SoDIMMUp to 8 GB DDR3 1600 Mhz SoDIMM
VIDEO CARDIntel HD GraphicIntel HD Graphics 620, 300MHz - 1.0GHzIntel HD Graphic 500
Read more
PSE 3185 RF

Data sheet

CHASSIS MATERIAL
Black Painted steel & alluminum
WORKING TEMP
0 - 60°C, non-condensing
COOLING
Fanless
WEIGHT
6 Kg.
IP PROTECTION
IP65 on front-panel, IP40 on rear-side
SOLID STATE
From 64 GB to 1 TB, SLC or MLC version available
MOUNTING
VESA 100
HUMIDITY
10-90%
REMOVABLE UNITS
CFAST option
HDD
From 500 GB to 2 TB
DC INPUT VERSION
24 V (9~24 V)
AC INPUT VERSION
90~265 V - 50-60Hz
DISPLAY
TFT 18,5" LED - Res. 1366 x 768 (1920 x 1080 on request)
MATERIALS
Alluminium + Polyester (Cover Glass)
TOUCH SCREEN
Resistive 5 wires or Capacitive multi-touch
Average reading distance
< 1 cm.
BUS
RS232
Reading method
Polling (Spontaneous on request)
Working frequency
125 Khz or 13,5 Mhz (Mifare)
